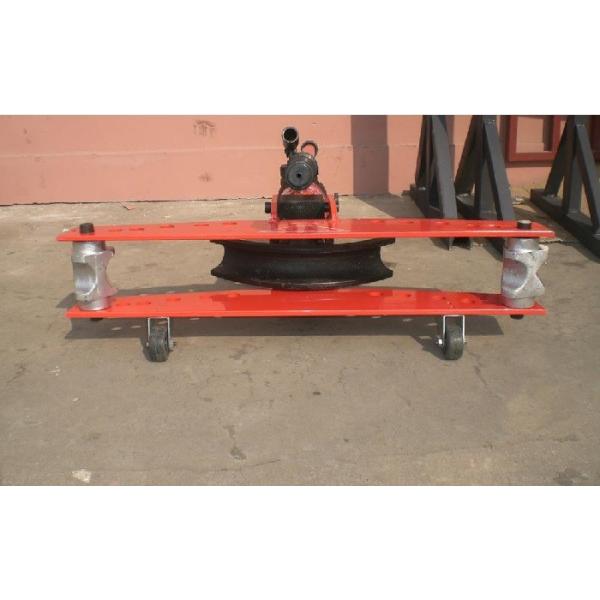

SWS 25T Hydraulic Basbar Bending Tools,Basbar Bender For Cu/Al Pipe
Features:SWS 25T Hydraulic Basbar Bending Tools,Basbar Bender For Cu/Al Pipe
1. The dual machine is designed for flat bending and standing of brass and Al. Curve radian accords with national standard.Smooth without knit.No wing plate adopts without welding hingle style.Meanwhile,which is by tempering processing,strong and during, no breakage and prevent aperture from transformation,switching convenience.
2.The unique design of curve bending scale 45-90 degrees, a curved shape.In the field of high precision, lead and find the template matahing row.Installation qulickly and easliy, engaged in the personnel with high efficiency, in power line or machine or maintenance on-site application.exert its powerful efficiency.
Characteristics:SWS 25T Hydraulic Basbar Bending Tools,Basbar Bender For Cu/Al Pipe
The hinge plate is convenient to open and close.
And with scale plate, we can accurately know the bending angle.
Upper and lower plate has been heat treated, so it is firm and durable, relieve deformation of orifice tension.
Flat, and bend is only need to change the die.
During bending, guide plate is fixed on a plywood mold.
In order to make the the copper and aluminum row in the same plane while bending,
and make the good surface flatness.
Single oil cylinder design, the tension spring reset, with single oil pump can work.
Technical Data:SWS 25T Hydraulic Basbar Bending Tools,Basbar Bender For Cu/Al Pipe
| Output force | 25T |
| Rated pressure | 700bar |
| Horizontal bending capacity | Cu /Al 125mm×16mm |
| Vertical bending capacity | Cu /Al 125mm×12mm |
| Pipe bending capacity | Max 3" |
| Weight | 52.5kg |
| Standard dies | One double offset ring spanner (19-inch), hexagon wrench(5mm, 8mm, 10mm) *1, |
| Horizontal bending die*1, vertical bending die base*1, eight sets of vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12) |
| Six support blocks (4, 5, 6, 8, 10,12) |
| One screw, used to connect the oil cylinder |
| 7 sets of bending dies(½ ¾ 1 1½ 2 2½ 3), 2 sets of leaning die , one bending middle screw |
| Package | Wooden case |
| Optional dies | horizontal bending tripod, bending die 1¼ |
1. It is designed for bending bus bar in 125mm used in power generation factory.power transmission station and copper bus bar and aluminum bus bar.
2. 2 in l horizontal and erective bending available.lt's really one machine in two function.
3. The hydraulic cylinder with 35 Ton of outlet force. lt's very powerful in quick speed and high efficiency.
4. It is made in flip style for easy taking workpiece.
5. The unit body is made from high tough alloy steel. As a result,it's light weight for carrying conveniently. Bending bus bar smoothly
6. Ouick coupling for easy load and unload.
7. Standard and assembling;Horizontal bending die:One moveable die.two errective poles, one adaptor.Erective bending die.one die frame.two big grip plank.two small grip plank.seven crescent die plate,two support for erective bending.
